3L induatry Dual frequency ultrasonic cleaner

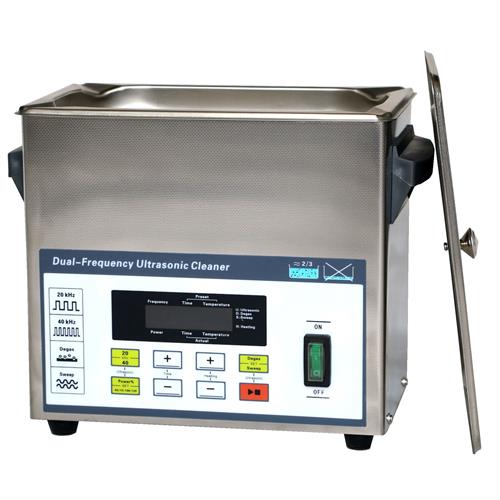

Dual-Frequency Ultrasonic Cleaner DR-DSP30

Certificate	CE & RoHS &  FCC
Product Model	DR-DSP30
Material	Stainless steel SUS304
Tank Capacity / Size	3L/238x138x100 mm
Ultrasonic Frequency	20KHz    or  40KHz
Ultrasonic Power	120W
Ultrasonic Timer	0~60 Minute,
Heating Power	150W
Degas  Sweep Pulse	YES
Drainage	Optional
Lid	Have
Set Power	0-120%
Power Supply	100V~120V/AC, 50/60Hz    200V~240V/AC, 50/60Hz

Ultrasonic cleaners can be effectively used to cleaning, disinfecting, degreasing, descaling, stripping, burnishing, deflashing, removing rust, removing dust, and so on.

The ultrasonic units offer practically every available technical feature. Now the units of the P series with degas sweep pulse, increase the ultrasonic effect further to obtain even better results.

The materials used and the reliable technology prolong the service life of the units. The new design combines more functionality with modern looks.

The basis of nearly perfect cleaning processes with ultrasound is the  high-performance transducer system with 37 kHz.
When used in tough permanent operation you will find that the new units with their functional design fully meet the demands of any cleaning task.

ALL Featuring

● All the buttons are touch-sensitive, LCD window shows
● Temperature control knob (cleaning liquid temperature setting),  Timer control knob (cleaning time setting)
● START/PAUSE & Memory button, On/Off button.
● Ultrasonic Power setting button, power set 40%-70%-100%.
● Degas sweep pulse button

Degassing is the removal of dissolved oxygen trapped in a liquid. In ultrasonic cleaning systems, trapped, dissolved oxygen in the ultrasonic cleaning solution will hinder the ability of the system to clean. This dissolved oxygen must be
removed  from the system by de-gassing.

The Sweep function guarantees an optimum sound field distribution in the cleaning bath due to a modulation of the frequencies.

Pulse – activatable power increase of approx. 20% by inforcement of the peak performance (High-strength cleaning power 120% with pulse)

● Stainless steel lid, basket, Mesh baskets (basket must be ordered separately)

Package Details

(1)  3L Ultrasonic cleaner
(2)  Standard Basket  or mesh basket if need
(3)  Power cord
(4)  User guide1 unit / carton
carton size: 1 unit/carton   carton size：26x26x30 (cm)            N/G: 3.2 kgs         G/W:4.5 kgs
                      4 unit/carton   carton size: 52x38x67 (cm)            N/G: 12.8 kgs         G/W: 18 kgs
