Ultrasonic Transducers

Ultrasonic Transducers

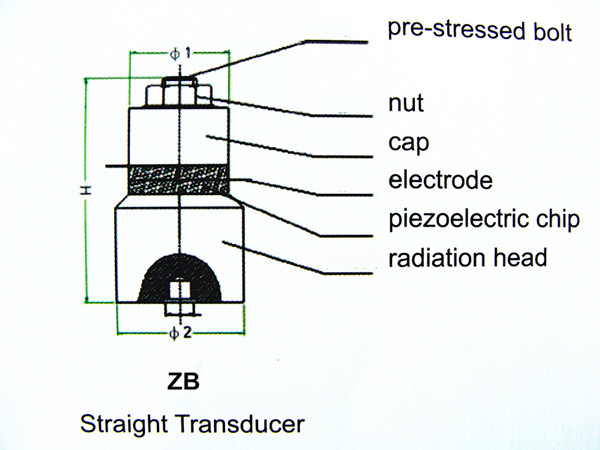

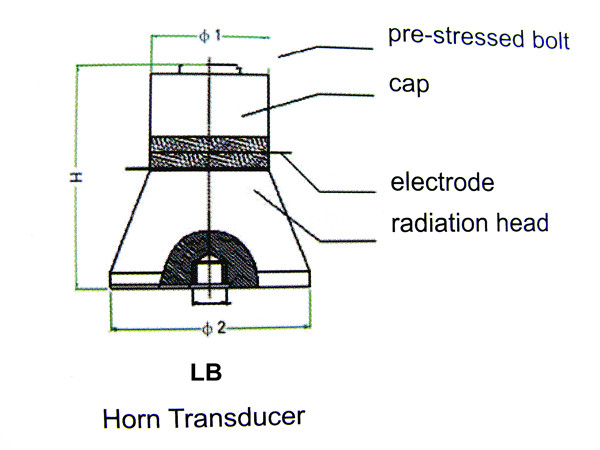

Piezoelectric transducer uses the piezoelectric effect to realize transducer between electric and sound energy. It comprises a radiation head, electrode, cap, prestressed bolt, piezoelectric transducer is widely used in ultrasonic cleaning machine and high-power industry cleaning devices.

Features
◇ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.
◇ High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing        groove with bolt. compare with a magnetic expansion vibrator, its amplitude can be improve above 50%.
◇ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.
◇ Good construction: fastened by bolt, easy for assembling, high reliability.

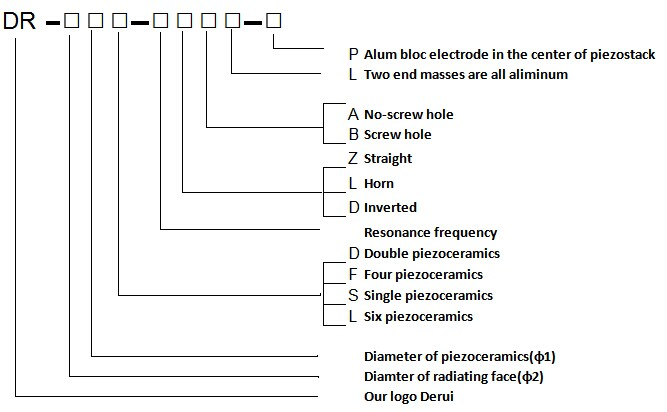

Type	Length ( mm)	Weigh (g)	Frequency (KHZ)	Resonance  Impedance (Ω)	Static Capacity  (pF)±10%	Input power (W)
DR-6845D-20LA  PZT-8	94	900	20	10-20	5200	100
DR-6845D-25LB  PZT-4	77	710	25	10-20	6600	100
DR-6850D-28LB  PZT-4	66	720	28	10-20	7800	120
DR-6845D-28LA  PZT-8	66	625	28	10-20	5200	100
DR-6845D-28LB  PZT-4	66	624	28	10-20	6600	100
DR-6845D-30L  PZT-8	61	555	30	10-20	5200	100
DR-5938D-25LB  PZT-4	77	530	25	10-20	5400	60
DR-5938D-28LB  PZT-8	68	470	28	10-20	3800	60
DR-4535D-28ZB  PZT-4	82	425	28	10-20	4100	50
DR-4838D-33LB  PZT-8	58	420	33	10-20	3800	60
DR-4938D-40LA  PZT-8	55	300	40	10-20	3800	60
DR-4838D-40ZB  PZT-4	56	310	40	10-20	5400	60
DR-4535D-40LB  PZT-4	54	260	40	10-20	4100	50
DR-4535D-40ZBL  PZT-4	57	3040	40	10-20	4100	50
DR-3830D-54LA  PZT-4	36	135	54	10-20	3200	35
DR-4938D-68ZB  PZT-8	80	460	68	10-20	3800	60
DR-5250D-68ZB  PZT-4	67	588	68	10-20	7800	120
DR-4038D-80ZBL PZT-4	60	325	80	10-20	5400	60
DR-4038D-120ZBL PZT-4	56	260	120	10-20	5400	60
DR-3635D-135ZBL  PZT-4	54	215	135	10-20	4200	50
