Different sizes of DR-DS Series

Different sizes of DR-DS Series

Model DR-DS13 DR-DS20 DR-DS22 DR-DS30 DR-DS40 DR-DS45 DR-DS60
Tank Size(L) 1.3 2 2.2 3 4 4.5 6
Tank Internal Dimension (mm) 150x138x65 150x138x100 238×138×65 238×138×100 302×152×100 238×138×150 302×152×150
Frequency (KHz) 37KHz 37KHz 37KHz 37KHz 37KHz 37KHz 37KHz
Ultrasonic/Heating Power (W) 80 / 60 80 / 60 160 / 100 160 / 150 160 / 220 160 / 220 240 / 270
Degas & Sweep Yes Yes Yes Yes Yes Yes Yes
Drainage Valve No No Optional Optional Optional Optional Optional
Carrying Handle No No Yes Yes Yes Yes Yes
Cover Yes Yes Yes Yes Yes Yes Yes
Unit weight(Kg) 3.2 3.5 4 4.5 5.8 4.7 6.8


Model DR-DS100 DR-DS120 DR-DS130 DR-DS150 DR-DS220 DR-DS280
Tank Size(L) 10 12 13 15 22 28
Tank Internal Dimension (mm) 302×239×150 490×138×150 302x239x200 325x295x150 502×298×150 502×298×20
Frequency (KHz) 37KHz 37KHz 37KHz 37KHz 37KHz 37KHz
Ultrasonic/Heating Power (W) 320 / 310 400 / 380 400 / 420 480 / 470 480 / 470 640 / 620
Degas & Sweep Yes Yes Yes Yes Yes Yes
Drainage Valve Yes Yes Yes Yes Yes Yes
Carrying Handle Yes Yes Yes Yes Yes Yes
Cover Yes Yes Yes Yes Yes Yes
Unit weight(Kg) 8.5 8 9.5 12 13.5 14.5

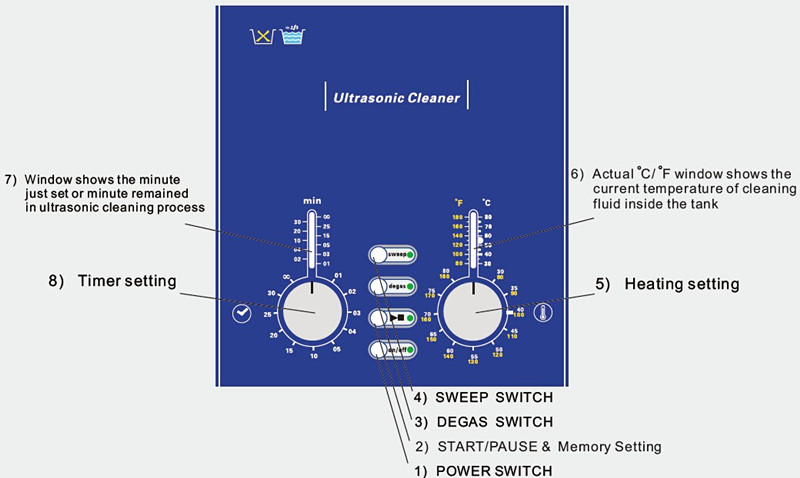

Feature Illustration

Degassing is the removal of dissolved oxygen trapped in a liquid. In ultrasonic cleaning systems, trapped, dissolved oxygenin the ultrasonic cleaning solution will hinder the ability of the system to clean. This dissolved oxygen must be removed from the system by de-gassing.

The Sweep function guarantees an optimum sound field distribution in the cleaning bath due to a modulation of the frequencies.

The sum of all possibilities

● All the buttons are touch-sensitive
● LED window shows
● Electronic time and temperature control
● Autostart temperature-controlled/temperature pre-selection
● Separate excitation type
● High-performance transducer system
● Dry run proof ceramic heating
● 0-60 min timer, 0-80 ℃/0-170℉ heating
● Quick degassing with autodegas/degas
● Improved cleaning performance with sweep
● Safety switch-off

Here is a partial list of some of the things we have helped clean


◆  Jewellery: gold, silver, platinum and fancy jewellery, Necklaces, rings, Bracelets etc.
◆  Watch and glasses: watch cases,mechanical parts and metal bracelets, waterproof wristwatches, watch chains, gl
◆  Dental laboratory:  instruments, removal of cement and plaster; cleaning of dental mould spoons, drills and prostheses, dentures, crowns and other prosthetic materials.
◆  CD DVD: Any CD VCD DVD pre-recorded of CD-R/RW
◆  Office equipment: Printer heads, Fountain pen nibs Wax or Rubber stamps etc.
◆  Mental Items: Metal cutlery (knives/forks etc), old coins, mental badges, valves, machine nozzles, small metal parts etc.
◆  Laboratory and Medical sector:  laboratory instruments made of glass, plastic or metal, surgical, medical and of micro-instruments without damaging the material, or cleaning of rigid endoscopes and flexible endoscopic accessories
