Different sizes of DR-MH Series

Model	DR-MH13	DR-MH20	DR-MH22	DR-MH30	DR-MH40	DR-MH45	DR-MH60
Tank Size（L）	1.3	2	2.2	3	4	4.5	6
Tank Internal Dimension (mm)	150×138×65	150×138×100	238×138×65	238×138×100	302×152×100	238×138×150	302×152×150
Operation  Frequency (KHz)	40	40	40	40	40	40	40
Ultrasonic Power	60	60	120	120	120	120	180
Heating Power	60	100	100	150	220	220	270
Drainage Valve	No	No	Optional	Optional	Optional	Optional	Optional
Carrying Handle	No	No	Yes	Yes	Yes	Yes	Yes
Cover	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Unit Weight (Kg)	3.5	3.5	4	4.5	5.8	4.7	6.8
Unit /Carton	4	4	4	4	2	2	2
Carton size(cm)	53x53x36	53x53x36	52x41x67	52x38x67	60x45x38	52x36x42	60x45x44
Carton Weight(kg)	13.8	12.6	15.8	18	11.6	9.4	13.5

Model	DR-MH100	DR-MH120	DR-MH130	DR-MH150	DR-MH220	DR-MH280
Tank Size（L）	10	12	13	15	22	28
Tank Internal Dimension (mm)	302×239×150	490×138×150	302x239x200	325x295x150	502×298×150	502×298×200
Operation  Frequency (KHz)	40	40	40	40	40	40
Ultrasonic Power	240	300	300	360	360	480
Heating Power	310	380	420	470	470	620
Drainage Valve	Yes	Yes	Yes	Yes	Yes	Yes
Carrying Handle	Yes	Yes	Yes	Yes	Yes	Yes
Cover	Yes	Yes	Yes	Yes	Yes	Yes
Unit Weight (Kg)	6.5	6.8	7.2	8.6	10.1	10.2
Unit /Carton	1	1	1	1	1	1
Carton size(cm)	47x36x43	67x26x47	48x37x45	48x43x47	67x43x42	67x43x47
Carton Weight(kg)	8.5	8	9.5	12	13.5	14.5

Feature Illustration

MH Series Feature

● The stainless steel tank used and the reliable technology prolong the service life of the units

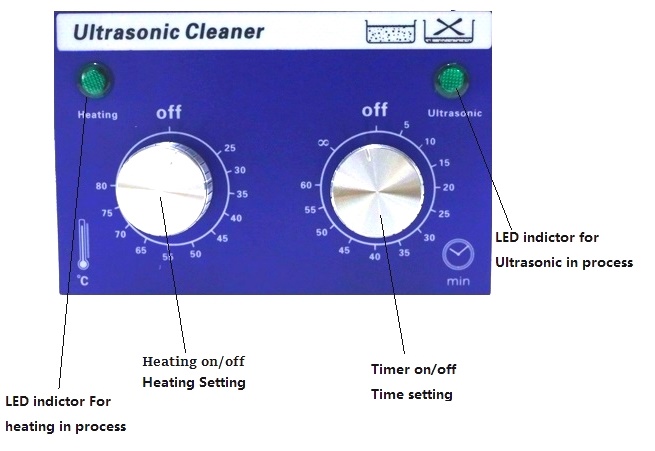

●  With mechanical timer & heater control
●  Ultrasonic Timer 0~60 Minute, infinity
●  Temperature adjust from 25℃ to 80℃
●  High-performance transducer system


Here is a partial list of some of the things we have helped clean

◆  Jewellery: gold, silver, platinum and fancy jewellery, Necklaces, rings, Bracelets etc.
◆  Watch and glasses: watch cases,mechanical parts and metal bracelets, waterproof wristwatches, watch chains, glasses sunglasses etc.
◆  Dental laboratory:  instruments, removal of cement and plaster; cleaning of dental mould spoons, drills and prostheses, dentures, crowns and other prosthetic materials.
◆  CD DVD: Any CD VCD DVD pre-recorded of CD-R/RW
◆  Office equipment: Printer heads, Fountain pen nibs Wax or Rubber stamps etc.
◆  Mental Items: Metal cutlery (knives/forks etc), old coins, mental badges, valves, machine nozzles, small metal parts etc.
◆  Laboratory and Medical sector:  laboratory instruments made of glass, plastic or metal, surgical, medical and of micro-instruments without damaging the material, or cleaning of rigid endoscopes and flexible endoscopic accessories
