Different sizes of DR-P Series

Different Size in P-series

Model DR-P22 DR-P30 DR-P40 DR-P45 DR-P60
Tank Size（L） 2.2 3 4 4.5 6
Tank Internal Dimension (mm) 238×138×65 238×138×100 302×152×100 238×138×150 302×152×150
Frequency (KHz) 37KHz 37KHz 37KHz 37KHz 37KHz
Ultrasonic/Heating Power (W) 160 / 100 160 / 150 160 / 220 160 / 220 240 / 270
Degas Sweep Pulse Yes Yes Yes Yes Yes
Drainage Valve Optional Optional Optional Optional Optional
Carrying Handle Yes Yes Yes Yes Yes
Cover Yes Yes Yes Yes Yes
Unit weight(Kg) 4 4.5 5.8 4.7 6.8

Model DR-P100 DR-P120 DR-P130 DR-P150 DR-P220 DR-P280
Tank Size（L） 10 12 13 15 22 28
Tank Internal Dimension (mm) 302×239×150 490×138×150 302x239x200 325x295x150 502×298×150 502×298×20
Frequency (KHz) 37KHz 37KHz 37KHz 37KHz 37KHz 37KHz
Ultrasonic/Heating Power (W) 320 / 310 400 / 380 400 / 420 480 / 470 480 / 470 640 / 620
Degas Sweep Pulse Yes Yes Yes Yes Yes Yes
Drainage Valve Yes Yes Yes Yes Yes Yes
Carrying Handle Yes Yes Yes Yes Yes Yes
Cover Yes Yes Yes Yes Yes Yes
Unit weight(Kg) 8.5 8 9.5 12 13.5 14.5

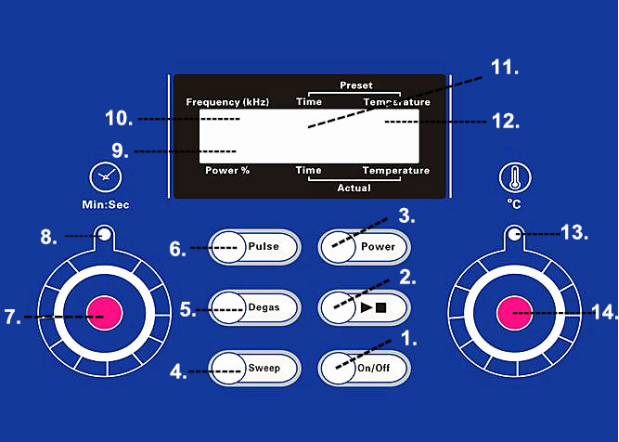

Features Illustration

1.  On/Off button 8.     LED indicator for Cleaning process
2. START/PAUSE & Memory button 9. Power shows
3. Ultrasonic Power setting button 10. Cleaning frequency shows
4. Sweep button 11. Cleaning time shows
5. Degas button 12. Show the Temperature of  cleaning liquid
6. Pulse button 13. LED indicator for Heating process
7. Timer control knob (cleaning time setting) 14. Temperature control knob ( temperature
setting)

Degassing is the removal of dissolved oxygen trapped in a liquid. In ultrasonic cleaning systems, trapped, dissolved oxygein the ultrasonic cleaning solution will hinder the ability of the system to clean. This dissolved oxygen must be   removed from the system by de-gassing.

The Sweep function guarantees an optimum sound field distribution in the cleaning bath due to a modulation of the frequencies.

Pulse – activatable power increase of approx. 20% by inforcement of the peak performance

The sum of all possibilities
● All the buttons are touch-sensitive
● LCD window shows
● Electronic time and temperature control
● Autostart temperature-controlled/temperature pre-selection
● Separate excitation type
● High-performance transducer system
● Dry run proof ceramic heating
● 0-60 min timer, 0-80 ℃/0-170℉ heating
● Quick degassing with autodegas/degas
● Improved cleaning performance with sweep
● High-strength cleaning power 120% with pulse
● Ultrasonic power set 40%-70%-100%
● Safety switch-off

Here is a partial list of some of the things we have helped clean


◆  Jewellery: gold, silver, platinum and fancy jewellery, Necklaces, rings, Bracelets etc.
◆  Watch and glasses: watch cases,mechanical parts and metal bracelets, waterproof wristwatches, watch chains, glasses sunglasses etc.
◆  Dental laboratory:  instruments, removal of cement and plaster; cleaning of dental mould spoons, drills and prostheses, dentures, crowns and other prosthetic materials.
◆  CD DVD: Any CD VCD DVD pre-recorded of CD-R/RW
◆  Office equipment: Printer heads, Fountain pen nibs Wax or Rubber stamps etc.
◆  Mental Items: Metal cutlery (knives/forks etc), old coins, mental badges, valves, machine nozzles, small metal parts etc
◆  Laboratory and Medical sector:  laboratory instruments made of glass, plastic or metal, surgical, medical and of micro-instruments without damaging the material, or cleaning of rigid endoscopes and flexible endoscopic accessories.
