Shenzhen Derui Ultrasonic Equipment Co. Ltd

3L Jewelry Air Dryer suitable for drying clock movements metal jewelry pcb after ultrasonic cleaning

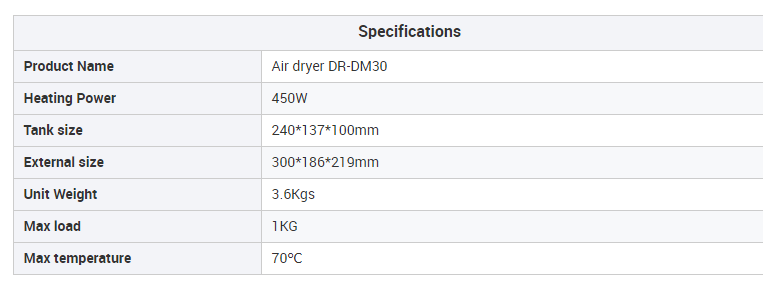

Performance specification

• Drying objects with warm or cold air

• Max. drying temperature 70 °C

• Temperature of the cold air: room temperature

• Automatic safety switch-off at excessive temperature

• Quick and easy to operate using the rocker switch with three positions: OFF, HOT (hot air), COLD (cold air)

• Dust filter (replaceable) prevents dust in the ambient air from re-contaminating the item

• Cooling unit plug-in connection: optimum mobility since the network cable on the unit can be unplugged

• Lid saves energy and creates effective flow turbulence to ensure the item is fully dried

• Stainless steel enclosure, protected against dripping water

• Suitable for use with different stainless steel basket sizes

Only use the unit in accordance with the listed specifications.

Using it in any other way is considered improper use.

ØThe purpose of the unit is to dry objects after wet cleaning.

ØIt is suitable for drying clock movements, metal strips, clock parts,

large silverware and housings.

ØDo NOT dry objects with solvents on them.

ØThe unit is only intended for use in commercial applications.

ØOnly authorised specialist personnel who are familiar with this

manual may use this unit. Unauthorised persons, in particular

children, must not use this unit.

ØOnly use accessories made for this unit.

ØDo not dry living creatures in the unit.
