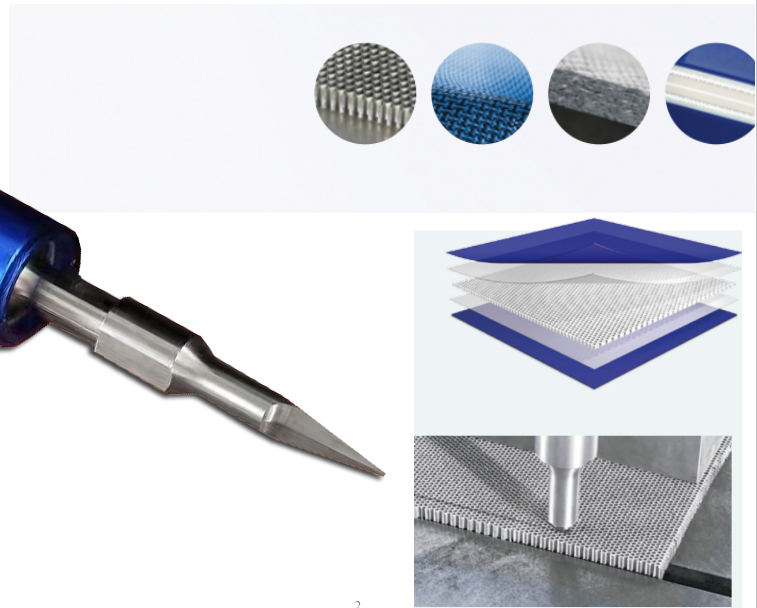

Deruiultrasonic cutter

Derui Intelligent ultrasonic cutter




1. LCD color liquid crystal display.
2. Indicator: POWER is the POWER indicator, RUN is the work indicator, and ALAM is the alarm indicator.
3. SET: to SET the button, press it for 3 seconds to enter the setting mode. Click SET again, and you can choose among the four options of amplitude -- welding time -- cooling time -- working mode.
4. Switch

Introduction to Derui intelligent ultrasonic cutter
The ultrasonic signal generator consists of an ultrasonic power amplifier module that converts 50/60 Hz power frequency AC power into super audio for transducer operation and a control module with "system protection monitoring" and "automatic tuning" functions. The control module cuts off the ultrasonic energy in the event of a failure in the ultrasonic cutting process, providing extremely high safety and reliability for the generator and even the entire cutting equipment.
1. The automatic automatic frequency chasing (AFC) adapts to various sizes of cutting molds and different design molds, and automatically tracks the frequency range: ±400HZ (according to 28KHZ ultrasonic as an example, the mold frequency can be automatically tracked at 27.40-28.20KHZ). Frequency tracking accuracy: ±5HZ
2. Using the CPU computer to monitor the speed of each program is very adaptable, built-in various protection system "system protection monitoring" function will respond to the following situations:
n Excessive pressure leads to overload
n Ultrasonic generator current is too large
n Loose head, horn or transducer loose or other malfunction
n Generator circuit failure
n Cable failure between generator and transducer
n Automatically compensated for unstable power supply frequency
3. The “auto-tuning” function enables the ultrasonic generator to automatically track and compensate for changes in the weld head frequency. This frequency change occurs when the temperature is too high and there is wear on the surface of the weld head or debris on the weld head.
4. Built-in automatic constant amplitude system, which automatically compensates for different air pressure changes and voltage fluctuations. It can adjust the ultrasonic amplitude from 50%-100% steplessly to meet the requirements of different cutting workpieces.
5, using IGBT for power amplification, fast response, 100 times faster than traditional
silicon power tube more, so the protection function is better.
